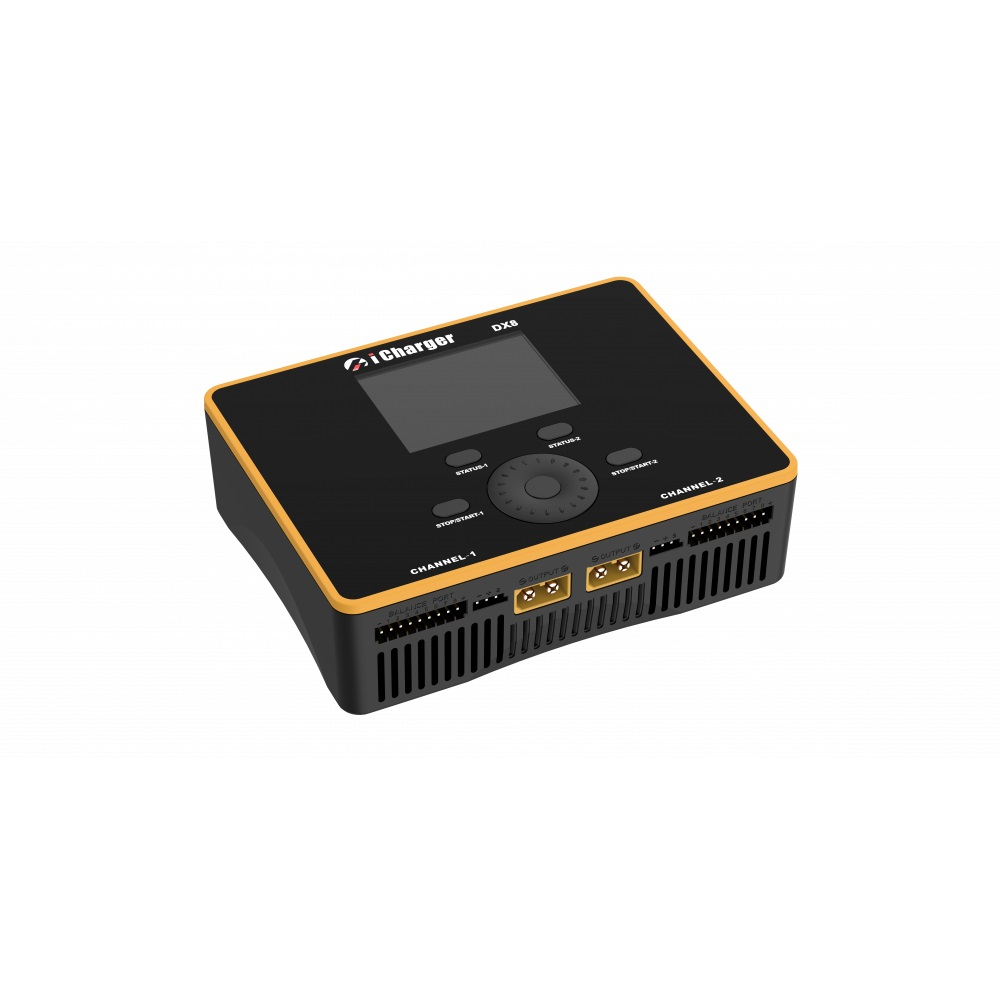

Junsi DX 8

With the iCharger DX8, the renowned manufacturer Junsi has brought a pocket-sized DUO charger onto the market. The DX8 charger combines the advantages of the well-known Junsi iCharger 308DUO with the portability of a small pocket charger. Despite the small dimensions of 97.5x128.5x40 mm, no compromises were made in terms of performance and usability. The newly developed rotary wheel has a very good pressure point and makes operation much easier. The technical data is impressive, 1600W charging power (from >25V), 1-8s LiXx cells and up to 30A charging current are also sufficient for large batteries with high capacity. Of course, all other battery types such as LiHV, LiIo, NiZn, PB, NiCd or NiMh batteries can also be charged. The discharge power is 70 watts in total (45 watts per output if only one output is used), but can be increased to up to 2100 watts using an external load (discharge resistor). Of course, the iCharger DX8 also masters regenerative charging. Here, the battery capacity is fed back into the supply battery, for example, from a full flight battery. The balancer current of 4 amps in total (2A per output) always ensures perfectly balanced cell voltages. A USB-C PD port for charging smartphones etc (5V/3A, 9V/2A, 12V/1.5A) or for software updates is also installed. The micro SD slot can be used to log the data, but also for future updates. A servo tester is also integrated, please note that an external power supply is required! The menu navigation is almost identical to the well-known Junsi iCharger 308DUO, 406 DUO or 4010DUO. A 2.4" IPS LCD display ensures good legibility even in low light. Instructions in English are included with the loader in the form of a CD; you can download the German version from us. All Junsi chargers of the X and DUO series have been developed and approved for use in model construction. Industrial use is not intended and therefore not permitted!

Technical data:

• Charging current adjustable per output: 0.05 -30A
• Charging current adjustable in synchronous mode: 0.05-50A
• Max. Number of NiCd/NiMH batteries: 1-25 cells
• Max. number of LiPo cells: 1-8
• Max. Power: 1600W
• Charging power max syncron: 1600W
• External high-current discharge synchronous: 1600W
• Max. Lead-acid battery voltage: 2-30V
• External high-current asynchronous discharge: 2100W (per channel 1050W at 35V/30A)
• Balancer compensation current per output: 2A
• Charging power max. at one output: 30A
• Discharge power per output: 30A
• Max. Charging current: 30A asynchronous, 50A synchronous
• Balancer compensating current synchronous mode: 4A
• Discharge current adjustable with feedback: 50A
• Input current limit: 65A
• Discharge power Max. in synchronous mode: 70W
• Max. Discharge power: 70W (45W per channel if used individually, if both together max. 70W!)
• Max. number of LiHv cells: 8
• Input voltage: 9-49V DC
• Balancer accuracy (depending on setting):
• Micro SD card slot: Yes
• Length (mm): LxWxH 97.5 x 128.5 x 40 Weight 440g
• Integrated power supply: No
• Charging output connector type: XT60
• Input connector type: XT90
